展频集成电路

时钟展频IC 可编译展频晶振

双线平衡滤波器

0603系列 0805 系列 1206 系列 1210 系列

共模滤波器

大电流共模滤波器叠层共模滤波器 EMI+ESD复合滤波器信号线共模滤波器

电感器

一体成型电感磁封胶电感片式叠成磁珠

静电抑制器

半导体静电抑制器高分子静电抑制器先进陶瓷静电抑制器

过流保护器

PPTC

过压防护器

大功率TVS 陶瓷气体放电管TGD 浪涌防护器TSS

展频集成电路

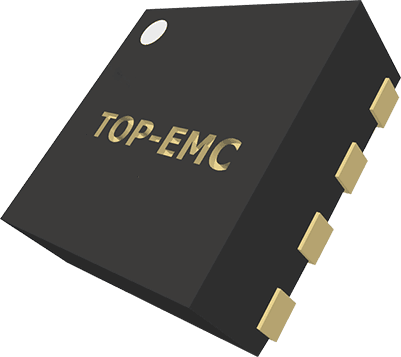

时钟展频IC

Chip Size	Part Number	Rate Voltage	Freq Range	Modulation Width
TDFN 2mm*2mm	1108	2.5V~3.3V	15MHz~55MHz	(±0.01~±2.50)%
	3128	1.65V~3.6V	1MHz~40MHz	(±0.06~±0.33)%
	3138	1.65V~3.6V	1MHz~60MHz	(±0.03~±0.18)%

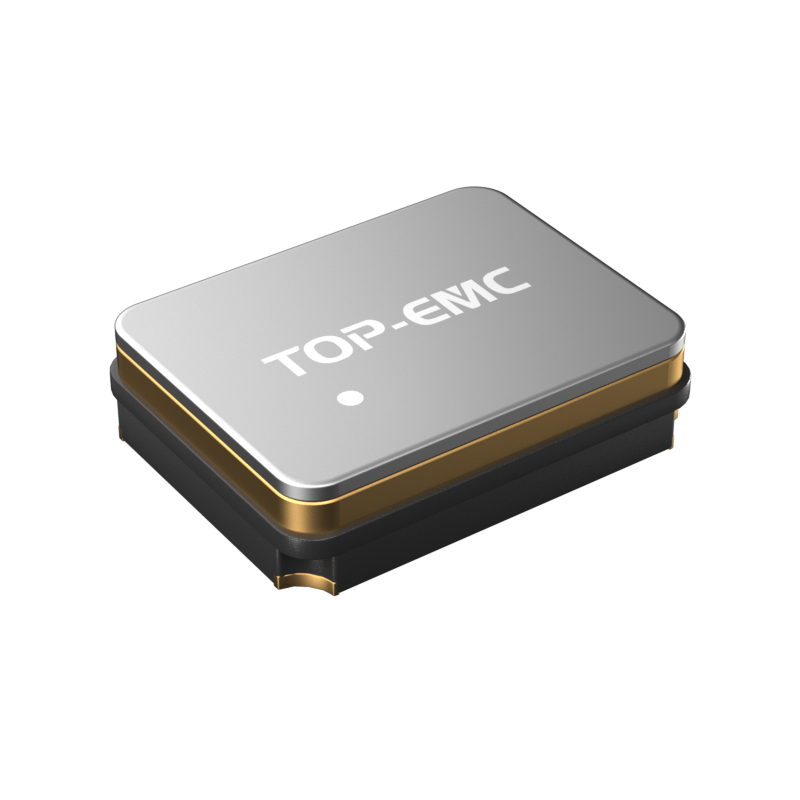

可编译展频晶振

Photo	Chip Size	Part Number	Frequency range	Supply voltage	Modulation Width	Data Sheet
	2.5mm*2.0mm	SSDPI series	1 MHz~170 MHz	1.62 V ~ 3.63 V	(±0.25~±2.0)%

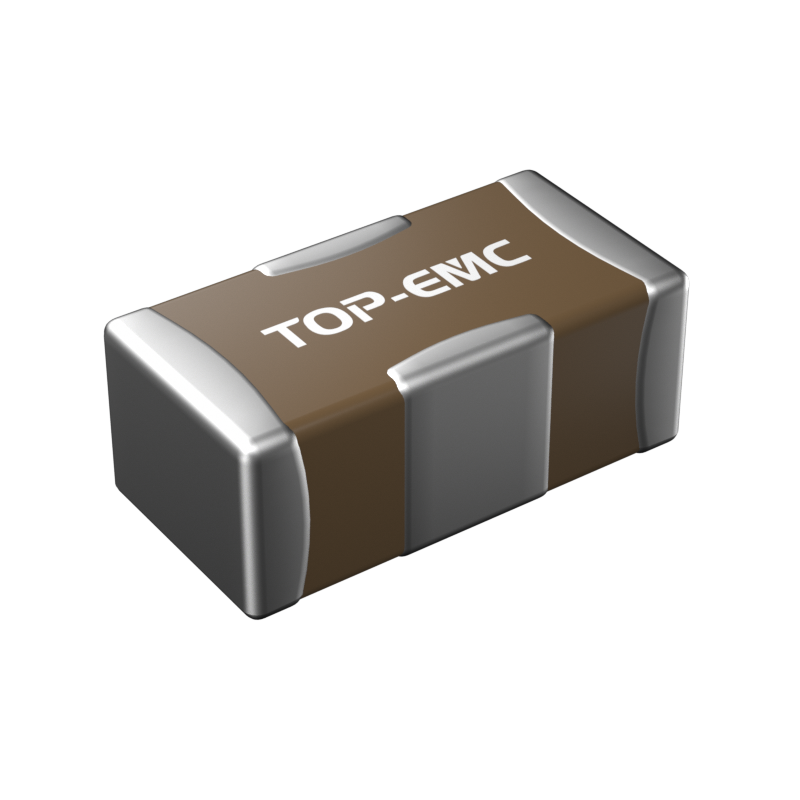

双线平衡滤波器

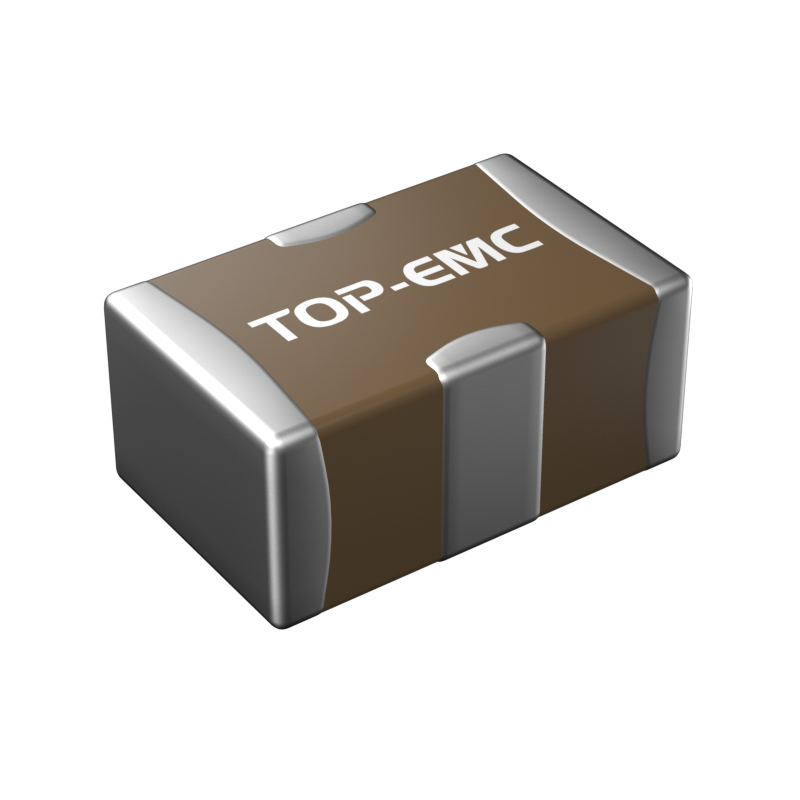

0603系列

Photo	Chip Size	Part Number	SRF(MHz)	Rated Voltage (V)	Capacitance（A/B）	Tolerance	Data Sheet
	0603	BDL0603S035V100T	35	10	50000 pF	±20%
		BDL0603S050V160T	50	16	23500 pF	±20%
		BDL0603S110V500T	110	50	5000 pF	±20%
		BDL0603S163V101T	163	100	2350 pF	±20%
		BDL0603S350V101T	350	100	500 pF	±20%
		BDL0603S900V500T	900	50	50 pF	±20%

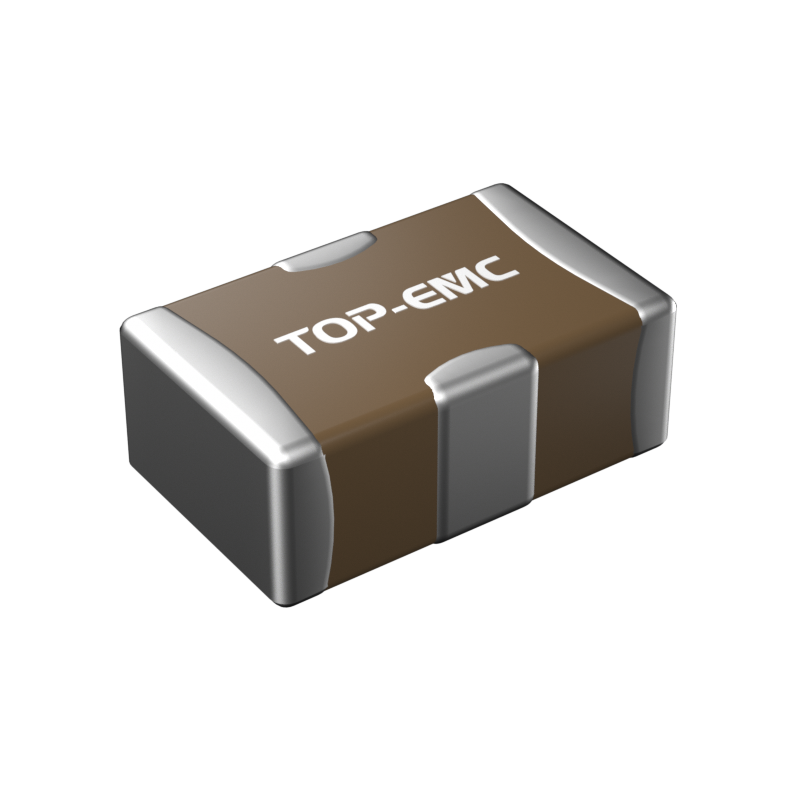

0805 系列

Photo	Chip Size	Part Number	SRF (MHz)	Rated Voltage (V)	Capacitance（A/B）	Tolerance	Data Sheet
	0805	BDL0805S035V250T	35	25	50000 pF	±20%
		BDL0805S050V500T	50	50	23500 pF	±20%
		BDL0805S110V101T	110	100	5000 pF	±20%
		BDL0805S350V101T	350	100	500 pF	±20%
		BDL0805S900V101T	900	100	50 pF	±20%

1206 系列


Chip Size

Part Number

SRF

(MHz)

Rated Voltage

(V)

Capacitance（A/B）

Tolerance

Data Sheet

1206

BDL1206S035V101T

100

50000 pF

±20%

BDL1206S110V101T

110

100

5000 pF

±20%

1210 系列


Chip Size

Part Number

SRF

(MHz)

Rated Voltage

(V)

Capacitance（A/B）

Tolerance

Data Sheet

1210

BDL1210S110V501T

110

500

5000 pF

±20%

共模滤波器

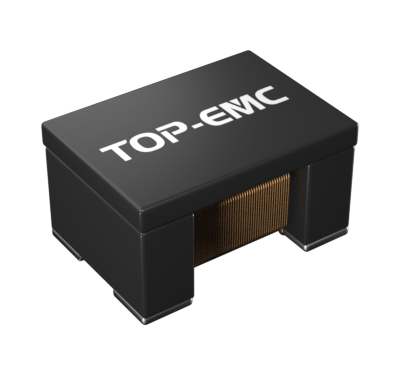

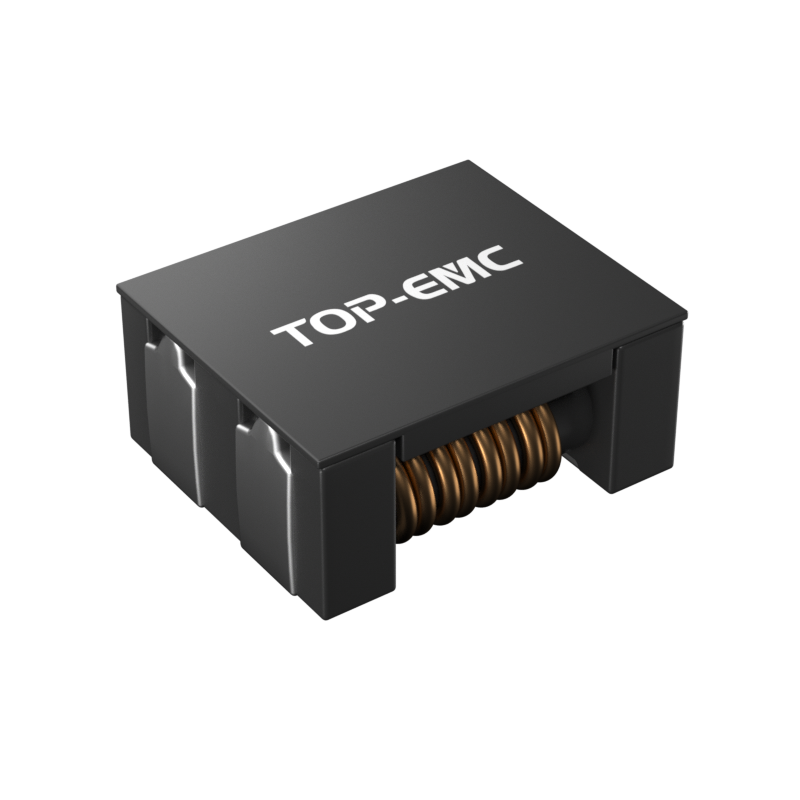

大电流共模滤波器

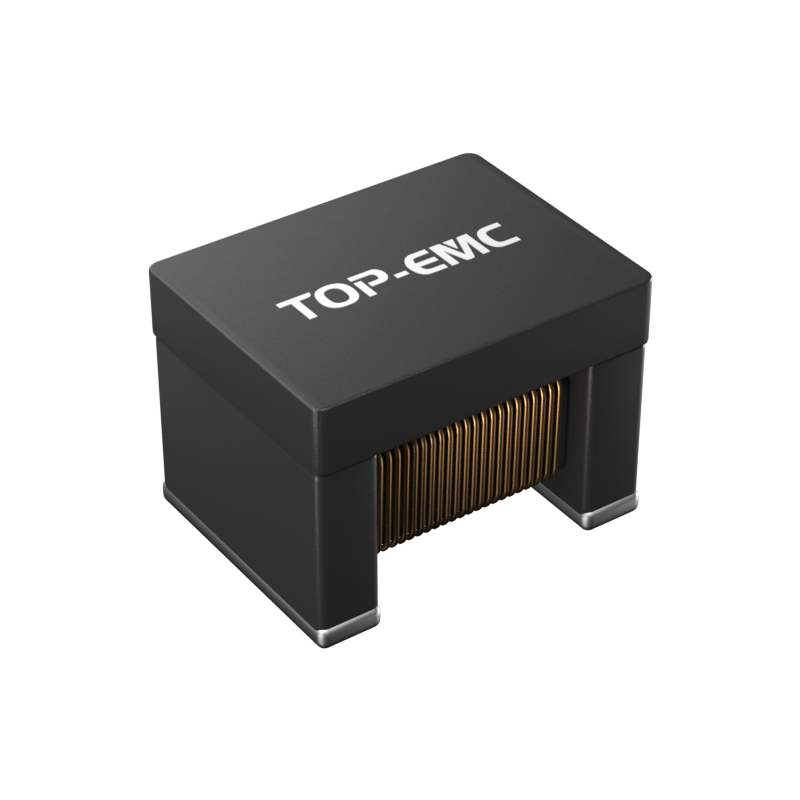

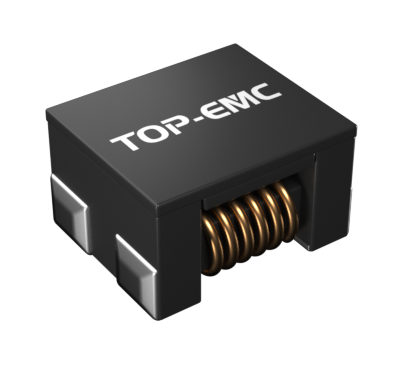

Photo	Chip Size (mm)	Part Number	Impedance@100MHz (Ω)	Rated Voltage MAX (V)	Rated Current MAX (A)	Applications	Data Sheet
	12*11	TLDCM1211-2-701TF	700	80	8	Power
	15*13	TLDCM1513-2-301TF	300	125	15
	3.2*2.5	TLDCM3225 Series	90~1000	50	0.4~1
	4.5*2.0	TLDCM4520 Series	230~1400	50	1.5~2.6
	4.5*2.5	TLDCM4525 Series	60~1400	50	1.0~3.0
	4.7*4.5	TLDCM4745 Series	230~1000	50	1.2~2.2
	5.0*3.0	TLDCM5030 Series	250~1400	50	1.5~5
	5.0*5.0	TLDCM5050 Series	190~4000	50	200~5000
	7.0*3.5	TLDCM7035 Series	500~3000	80	0.9~5.0
	7.9*7.8	TLDCM7978-2-501TF	500	50	4.5
	9.0*7.0	TLDCM9070 Series	300~2700	80	2.0~6.0

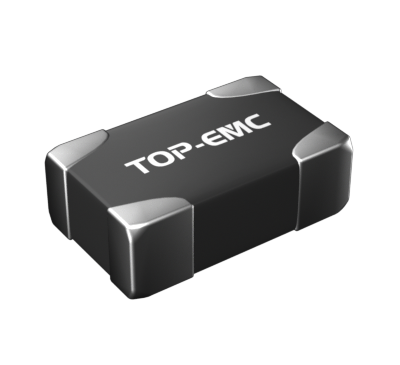

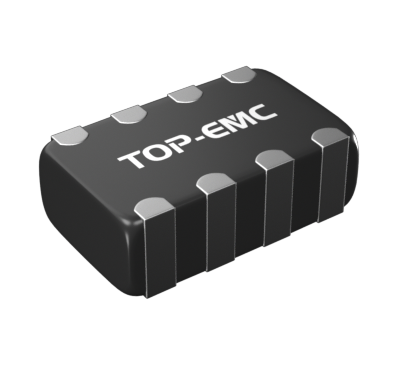

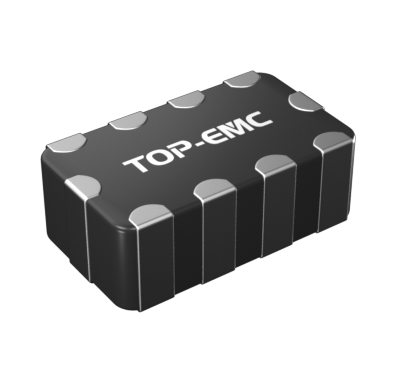

叠层共模滤波器

Photo	Chip Size (mm)	Part Number	Impedance (Ω)	Rated Voltage (V)	Rated Current MAX (mA)	Applications	Data Sheet
	0.65*0.65	TF0605A2X900MT	90	5	80	Signal Line
	0.85*0.65	TF0806A2X Series	43~90	5	100~130
	1.2*1.0	TF1210A2X Series	35~90	10	300
	2.0*1.0	TF2010A4X Series	67~280	5	80~140
	2.0*1.0	TF2010A4X900MT	90	5	400
	2.0*1.2	TF2012A2X Series	50~220	10	200~400

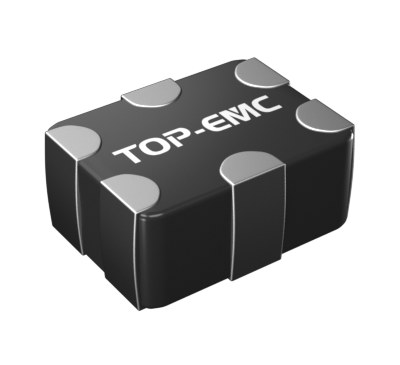

EMI+ESD复合滤波器

Photo	Chip Size (mm)	Part Number	Impedance (Ω)	Rated Voltage (V)	Rated Current MAX (mA)	Applications	Data Sheet
	0.8*0.6	TEF0806A2X900MT	90	5	100	Signal Line
	1.2*1.0	TEF1210A2XSeries	35~90	10
	2.0*1.2	TEF2012A4X101MT	100	10
	2.0*1.2	TEF2012A2X900MT	90	5

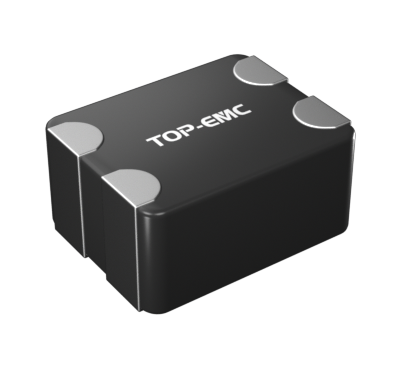

信号线共模滤波器

Photo	Chip Size (mm)	Part Number	Impedance (Ω)	Rated Voltage MAX (V)	Rated Current MAX (mA)	Applications	Data Sheet
	2.0*1.2	TLCMI 2012 Series	67~1000	50	200~400	Signal Line
	3.2*1.6	TLCMI 3216 Series	90~2200		200~370
	4.5*3.2	TLCMI 4532 Series	600~5800		150~250

电感器

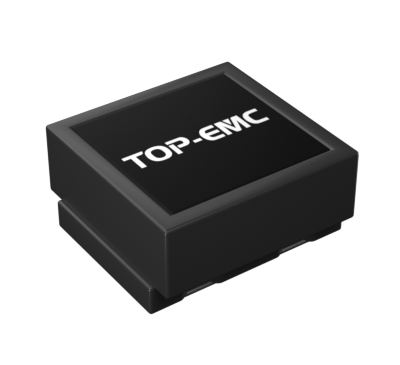

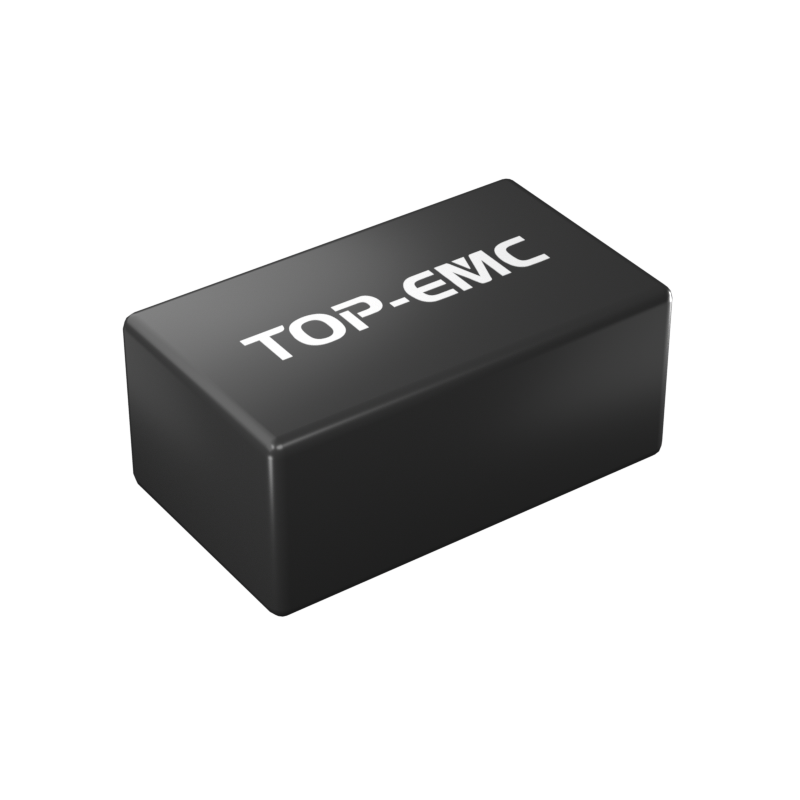

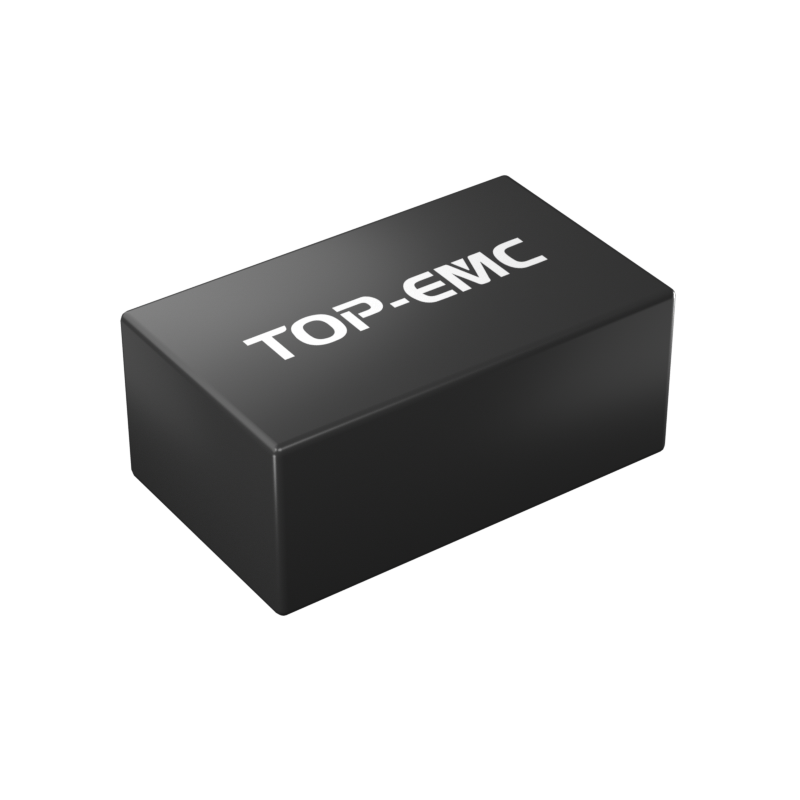

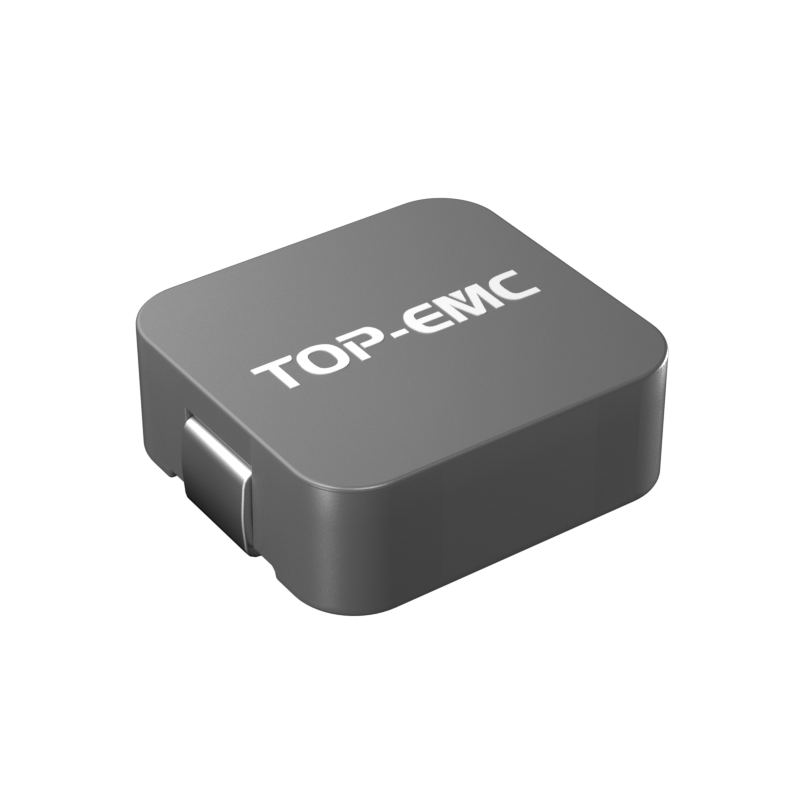

一体成型电感

Photo	Package	Part Number	Inductance	DC Resistance	Saturation Current	Heating Rating Current	Data Sheet
				TYP	TYP	TYP
			（μH）	（mΩ）	（A）	（A）
	020101	THMPI020101 Series	0.24~2.2	17~135	1.9~5.6	1.7~5.0
	020201	THMPI020201 Series	0.47~4.7	21~196	1.9~5.3	1.55~4.6
	040402	THMPI040402 Series	0.1~22.0	3.5~330	1.65~22	1.2~13
	050503	THMPI050503 Series	0.1~10	2.4~110	3.5~33	3.2~25
	070602	THMPI070602 Series	0.1~22	2.0~310	2.3~38	1.8~25
	070603	THMPI070603 Series	0.1~33	0.9~280	2.5~56	2.0~32
	070605	THMPI070605 Series	0.47~47	3.9~230	2.6~21	2~20
	111004	THMPI111004 Series	0.15~100	0.5~315	2.3~75	2.2~45
	141305	THMPI141305 Series	0.22~47.0	0.5~116	5~75	3~50
	171707	THMPI171707 Series	1.0~100	1.3~120	4.5~62	4.0~42

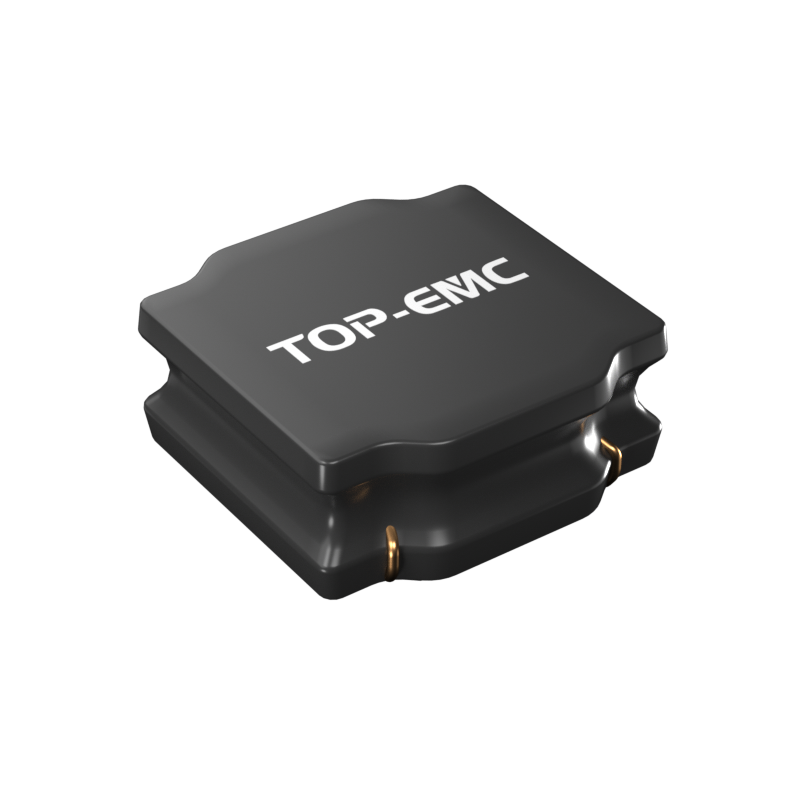

磁封胶电感

Photo	Package	Part Number	Inductance	DC Resistance	Saturation Current	Heating Rating Current	Data Sheet
				TYP	TYP	TYP
				（mΩ）	（A）	（A）
	252010	THWPI252010 Series	0.24~10	0.025~0.63	1~7.1	0.75~4.5
	252012	THWPI252012 Series	0.24~10	0.019~0.435	1.35~7.8	1~4.70
	303012	THWPI303012 Series	0.33~10	0.024~0.395	1.45~8.90	1.15~4.80
	303015	THWPI303015 Series	0.24~47	14~1200	0.35~4.80	0.32~3.50
	404020	THWPI404020 Series	0.24~47	0.017~1.200	1.30~17.0	0.66~7.00
	505020	THWPI505020 Series	1~47	21~580	0.65~5.10	0.75~4.00
	606028	THWPI606028 Series	1~100	13~600	0.82~7.6	0.80~5.20
	606045	THWPI606045 Series	0.56~220	7.5~890	0.63~14.5	0.55~6.20

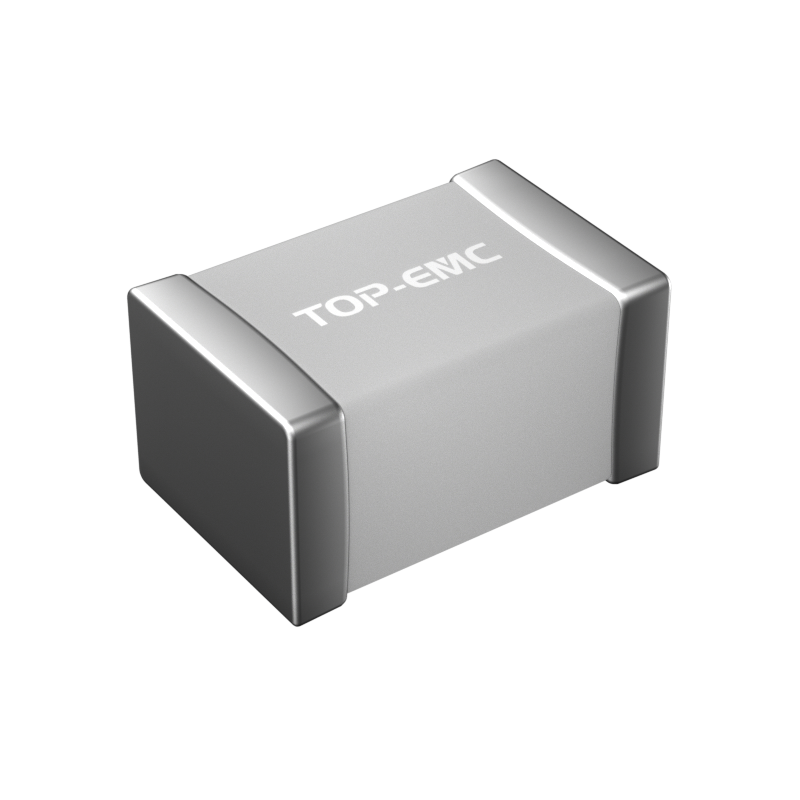

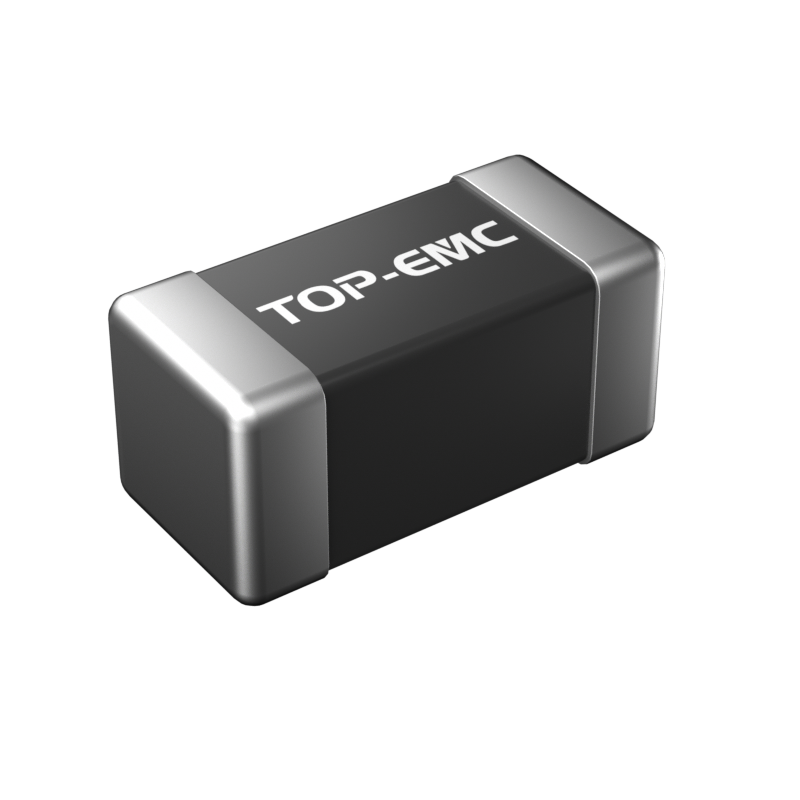

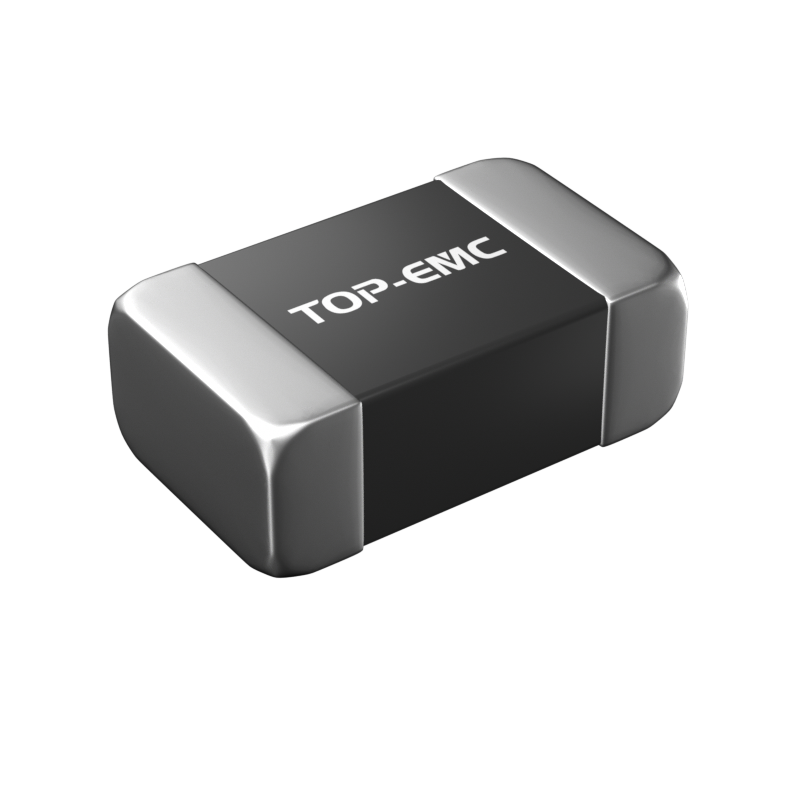

片式叠成磁珠

Photo	Applications	Part Number	Package	Impedance	Rated Current	DC Resistance	Data Sheet
					Max	Max
				（Ω）	（mA）	（Ω）
	Signal Line	TLEA Series	0603 [0201 inch]	60~600	200	0.4~1.7
			1005 [0402 inch]	0~1000	100~500	0.05~1.2
			1608 [0603 inch]	0~1000	200~2000	0.05~0.6
			2012 [0805 inch]	0~1000	500~2000	0.04~0.4
			3216 [1206 inch]	0~1200	600~2200	0.03~0.3
	Power、Signal Line	TLEB Series	0603 [0201 inch]	10~56	100~200	0.25~1.0
			1005 [0402 inch]	0~1800	50~600	0.15~1.8
			1608 [0603 inch]	0~2700	200~800	0.1~1.4
			2012 [0805 inch]	0~2700	200~1000	0.07~0.8
	Power	TLEC Series	1005 [0402 inch]	0~30	1000	0.05
			1608 [0603 inch]	0~600	500~3000	0.02~0.35
			2012 [0805 inch]	30~600	800~4000	0.02~0.25
			3216 [1206 inch]	30~1000	500~6000	0.01~0.3
			4516 [1806 inch]	60~470	2000~6000	0.01~0.05
	Power	TLED Series	1005 [0402 inch]	0~220	900~2000	45~160
			1608 [0603 inch]	30~600	1000~6000	10~150
			2012 [0805 inch]	22~1000	1500~6000	10~120

静电抑制器

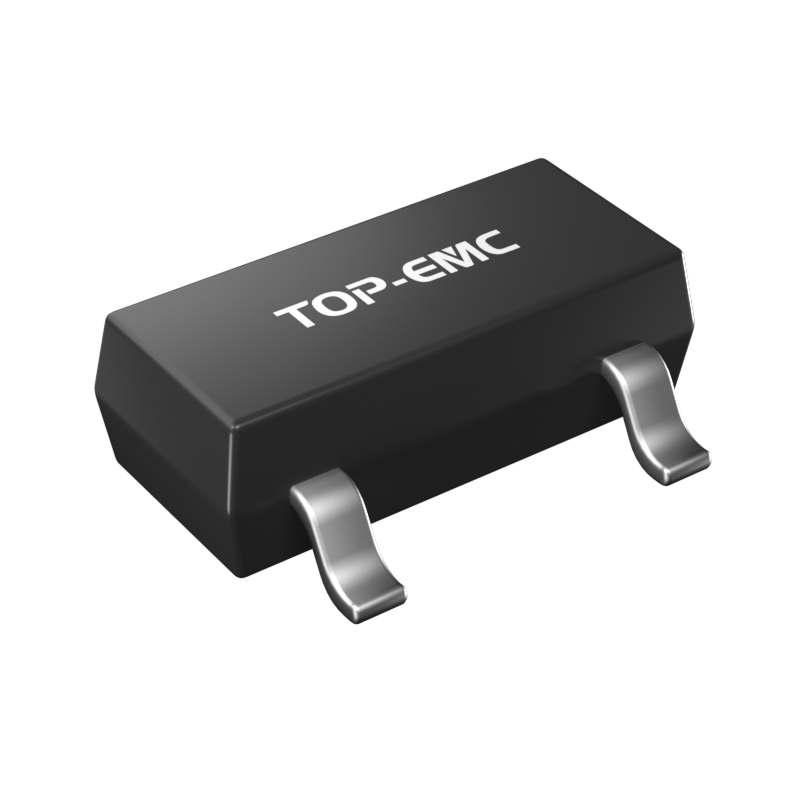

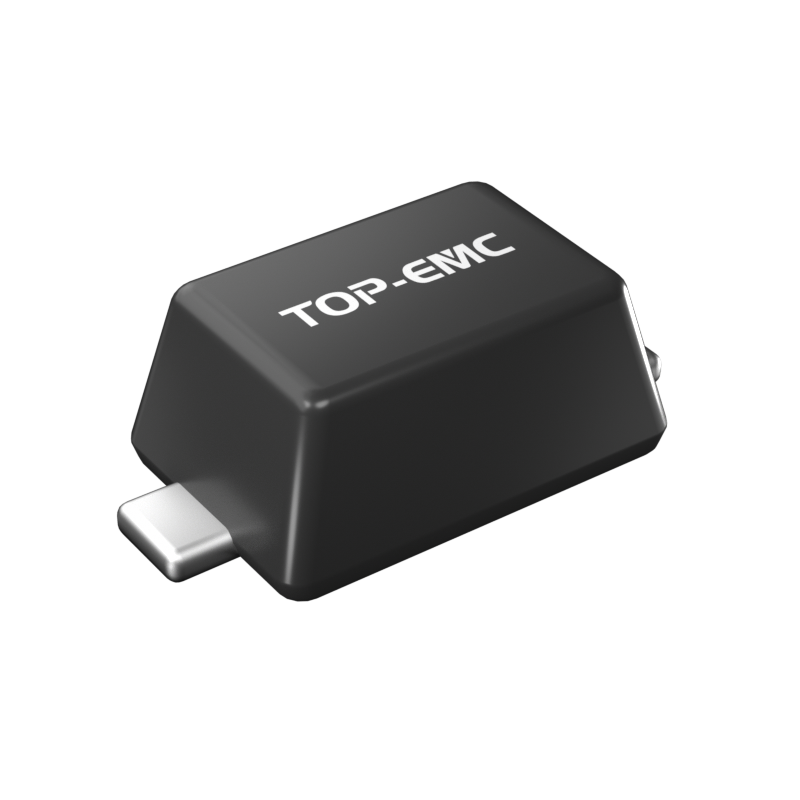

半导体静电抑制器

Photo	Package	Part Number	Directional	Channel	V_RWM	Vbr@IT=1mA	Vc	CJ@ Vr=0V,f=1 MHz	Applications	Data Sheet
					Max	Min		Type
					（V）	（V）	（V)	(pF)
	DFN0603-2L	TEVA15R0V05B1X	Bi	1	5	5.6	6	15	General I/O
	DFN0603-2L	TEVA0R3V05B1X	Bi	1	5	6.5	12	0.3	High Speed Signal
	DFN1006-2L	TEVB0R3V3B1X	Bi	1	3.3	4	12.5	0.3	High Speed Signal
		TEVB10R0V3B1X			3.3	3.7	9	10	General I/O
		TEVB2R5V05B1X			5	6	8.6	2.5	HDMI1.3&2.0、USB
		TEVB30R0V05B1X				6.1	7	30	Power
		TEVB11R0V05B1X				6.7	8.1	7	General I/O
		TEVB25R0V05B1X				6.8	8	15	General I/O
		TEVB3R0V05B1X				7	9.5	3	CVBS、LVDS、SIM
		TEVB0R5V05B1X				7.7	9.5	0.25	GSML2、Antenna、(100/1000M)Ethernet
		TEVB1R0V05B1X				7.7	9.5	1	High Speed Signal
		TEVB0R3V05B1X				8.2	10	0.3	USB3.0、Type-c、Antenna、HDMI
		TEVB5R0V05B1X				10	11.9	5	High Speed Signal
		TEVB20R0V12B1X			12	14	15	20	Power
		TEVB20R0V24B1X			24	29.2	34	16	General I/O
	SOD-923	TEVB0R35V3D1X	Uni		3.3	5.5	5.7	0.35	High Speed Signal
	DFN1006-3L	TEVP0R4V05D2X	Uni	2	5	6.8	8.3	0.4	USB3.0、Type-c

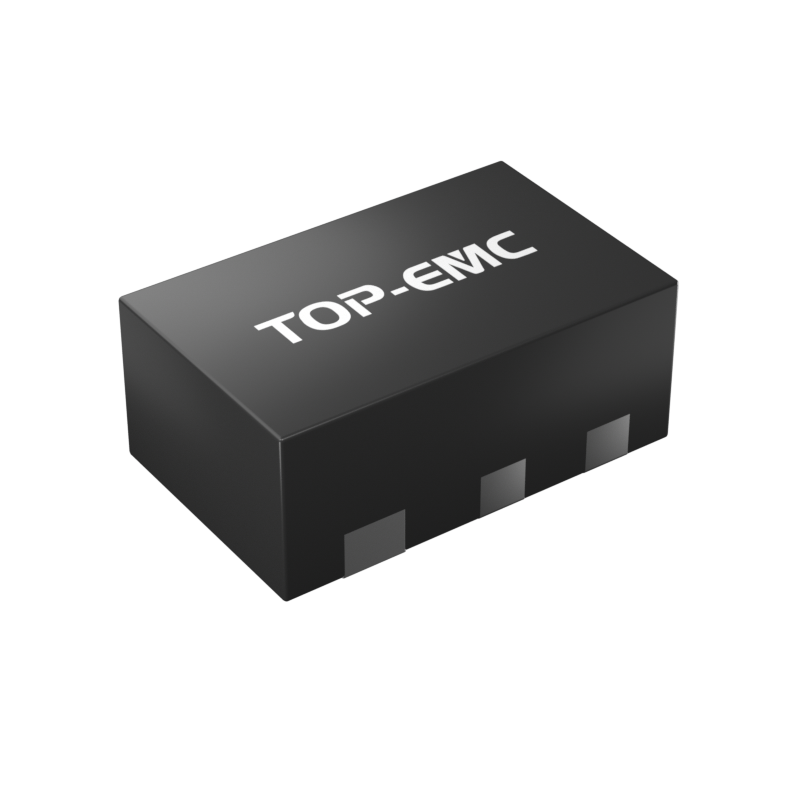

	DFN1610-6	TEVR0R6V05D2X	Uni	2	5	6	8.3	0.6	High Speed Signal

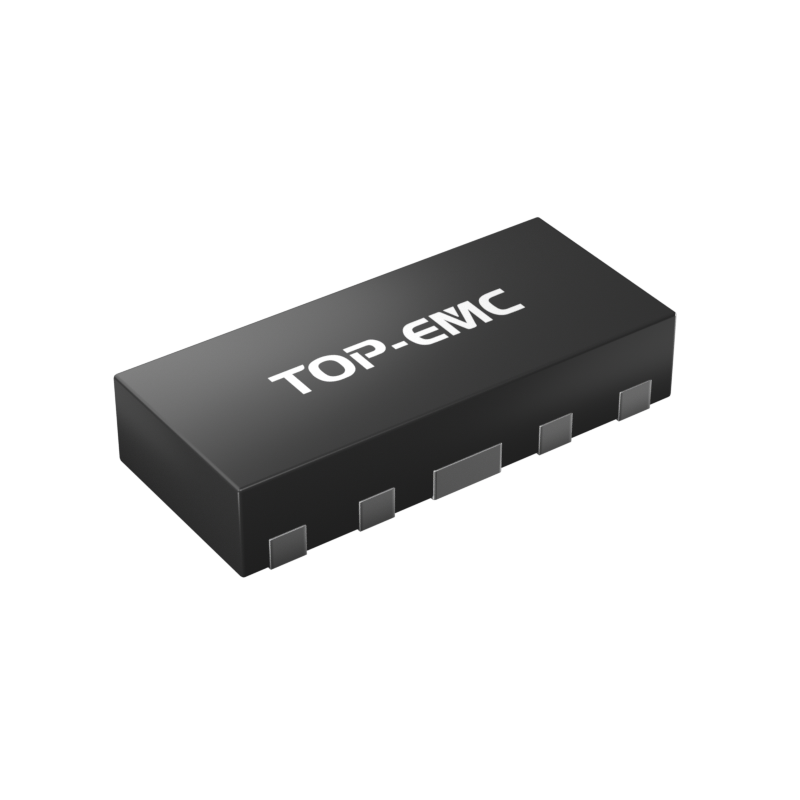

	DFN2510-10L	TEVA0R3V3D4X	Uni	4	3.3	3.8	8	0.3	High Speed Signal
	DFN2510-10L	TEVA0R4V05D4X	Uni	4	5	6.5	10	0.4	HDMI

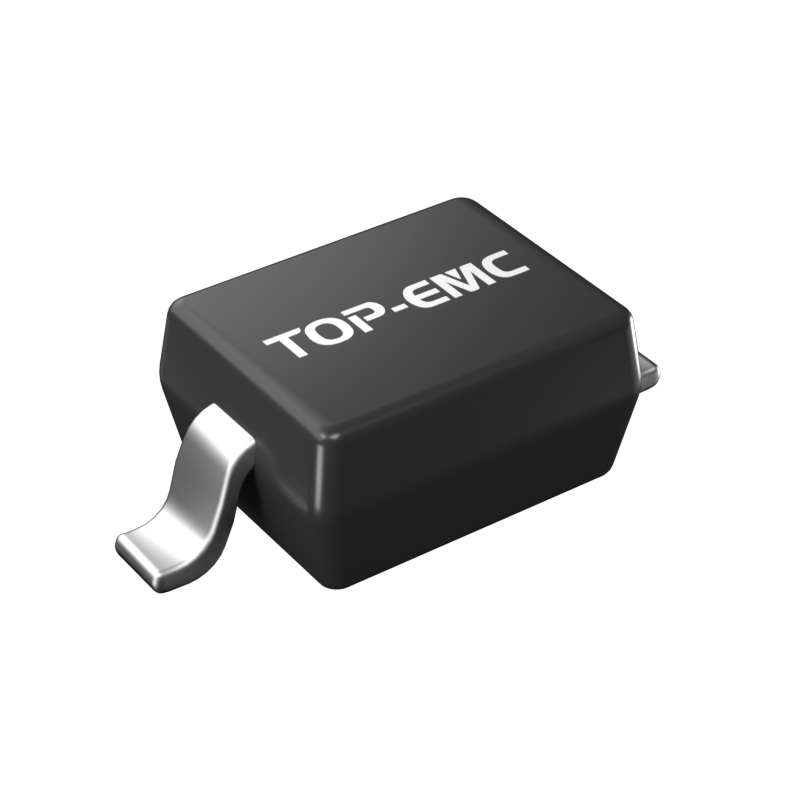

	SOD-523	TEVC10R0V3B1X	Bi	1	3.3	4	6	9.5	General I/O
		TEVC25R0V05B1X			5	6	11.6	25	Power
		TEVC0R5V05B1X				6	9.3	0.5	High Speed Signal
		TEVC1R0V05B1X				6.7	9.4	1	High Speed Signal
		TEVC3R0V05B1X				6.8	8	3	USB、MIC、TF
		TEVC9R0V12B1X			12	13.3	19	9	General I/O
		TEVC0R8V05D1X	Uni	1	5	6	10	0.6	High Speed Signal
		TEVC15R0V12D1X			12	15	17	15	General I/O
		TEVC28R0V36D1X			36	38	55	28	Power
	SOD-323	TEVD0R6V3B1X	Bi	1	3.3	4.4	5.4	0.6	（10/100/1000M） Ethernet、TF
		TEVD1R5V05B1X			5	6.7	8	1	High Speed Signal
		TEVD0R6V05B1X			5	6.7	8	0.6	High Speed Signal
		TEVD0R6V08B1X			8	9.2	10.2	0.6	Antenna
		TEVD0R6V12B1X			12	13.3	17	0.6	High Speed Signal
		TEVD0R6V15B1X			15	16.7	23	0.6	High Speed Signal
		TEVD0R6V24B1X			24	28	32	0.6	POC接口
		TEVD12R0V24B1X			24	26	43	9	General I/O
		TEVD22R0V15B1X			15	18	23.3	22	RS232
		TEVD300R0V05D1X	Uni	1	5	6.64	7.8	250	Power

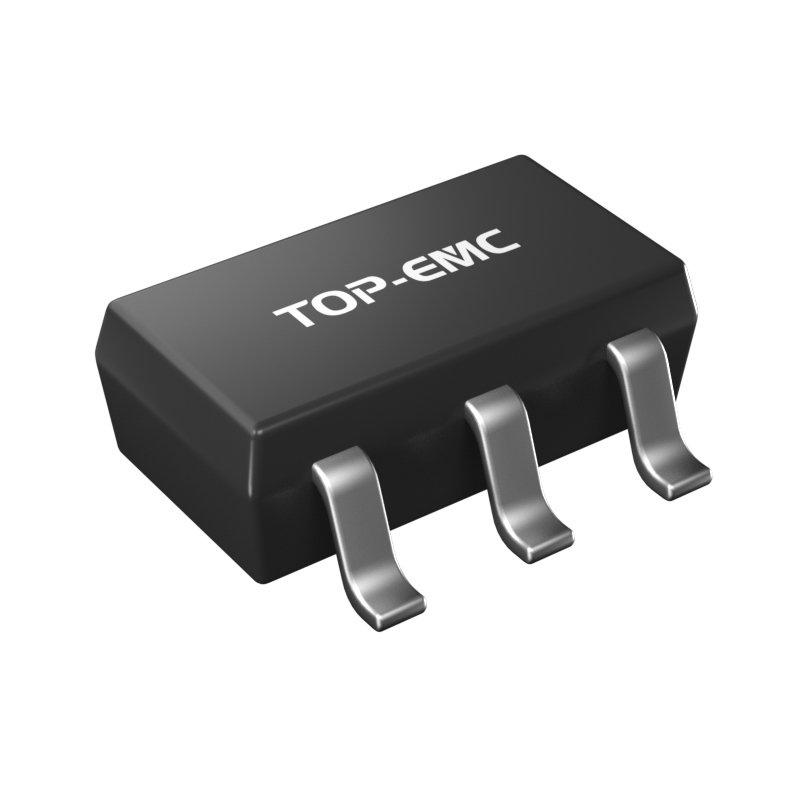

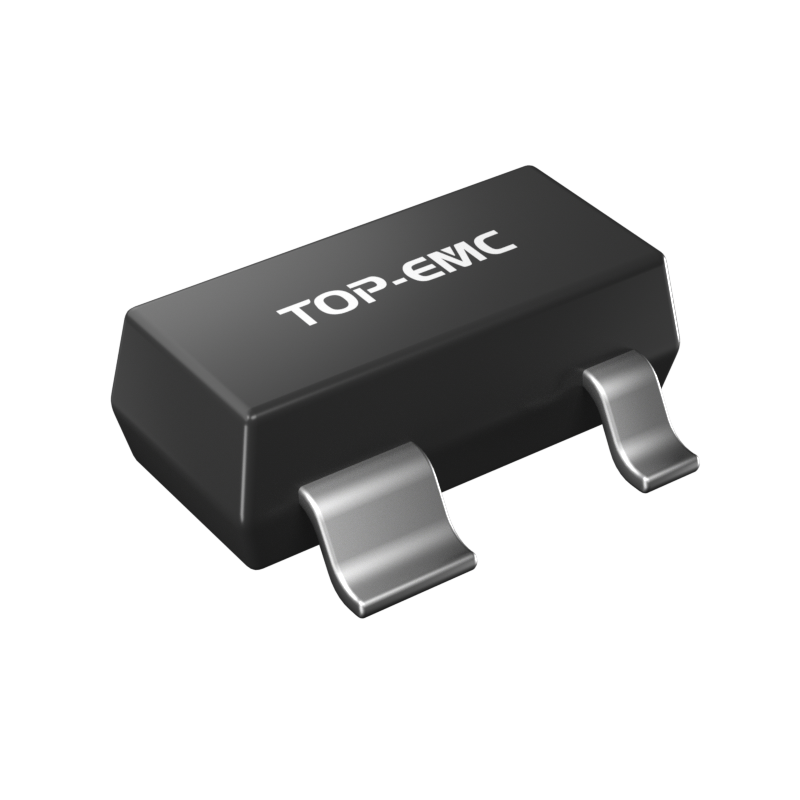

	SOT-23	TEVG0R6V05D2X	Uni	2	5	7.2	8.3	0.6	USB2.0、MIC、（10/100/1000M） Ethernet、DVI HDMI 1.2
		TEVG15R0V24B2X	Bi	2	24	28	34	15	CAN
		TEVG712	Bi	2	7	7.5	15	45	Power
		TEVG712	Bi	2	12	13.3	23	45	Power

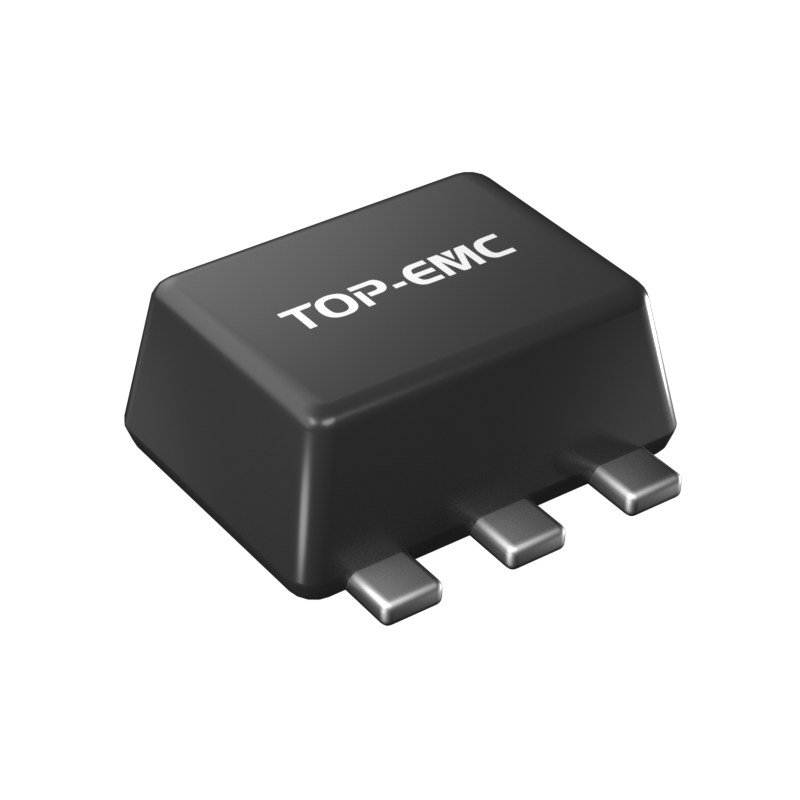

	SOT-23-6L	TEVD0R7V05D4X	Uni	4	5	7	9	0.6	DVI、HDMI 1.2、USB 2.0
	SOT-563	TEVJ0R4V05D4X	Uni	4	5	6	15	0.4	High Speed Signal
	SOT-143	TEVH0R6V05D2X	Uni	2	5	7.6	9.8	0.6	DVI、HDMI 1.2、USB 2.0

高分子静电抑制器

Photo	Package	Part Number	Directional	Channel	VR	VT	Vc	CP	Applications	Data Sheet
					Max		Type	Type
					V	V	V	Pf
	0402	TESB0R15V05B1X	Bi	1	5	300	30	0.15	Signal Line
		TEPB0R2V05B1X			5.5	250	25	0.2	Signal Line
		TEPB0R2V09B1X			9	250	25	0.2	Power
		TEPB0R15V09B1X			9	350	35	0.15
		TEPB0R2V12B1X			12	250	25	0.2
	0603	TEPC0R2V05B1X	Bi	1	5	250	25	0.2	Signal Line
		TESC0R15V05B1X			5	1000	30	0.15	Signal Line
		TEPC0R2V09B1X			9	250	25	0.2	Power
		TEPC0R2V12B1X			12	250	25	0.2
		TEPC0R15V12B1X			12	350	35	0.15
		TEPC0R05V24B1X			24	450	40	0.05
	2012	TEPA Series	Bi	4	5~12	350	80	0.25

先进陶瓷静电抑制器

Photo	Package	Part Number	Directional	Channel	V_DC	V_V@I_T=1mA	Vc	C_P	Applications	Data Sheet
					Max	Min		Type
					（V）	（V）	（V）	（pF）
	0402	TESB0R5V24B1X	Bi	1	24	90~120	250	0.5	Power、General I/O
		TESB0R5V42B1X			42	90~120	250	0.5
		TESB3R0V05B1X			5	45~65	135	3
		TESB3R0V09B1X			9	45~65	135
		TESB3R0V18B1X			18		140
		TESB3R0V24B1X			24		140
		TESB20R0V14B1X			14		135	20
		TESB33R0V05B1X			5		135	33
	0603	TESC0R2V24B1X	Bi	1	24	300	30	0.2
		TESC1R0V18B1X			18	46~60	135	1
		TESC3R0V05B1X			5	45~65		3
		TESC3R0V24B1X			24			3
		TESC10R0V18B1X			18			10
		TESC20R0V14B1X			14			20
		TESC33R0V05B1X			5			33
	0805	TESD Series	Bi	1	5.5~45	7.8~61	22~93	170~500

过流保护器

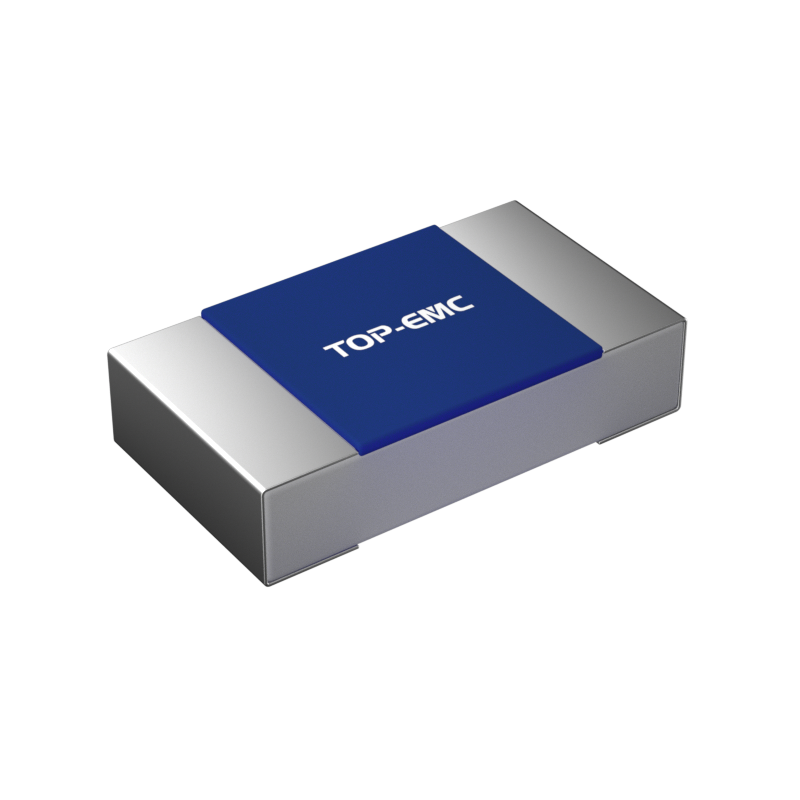

PPTC

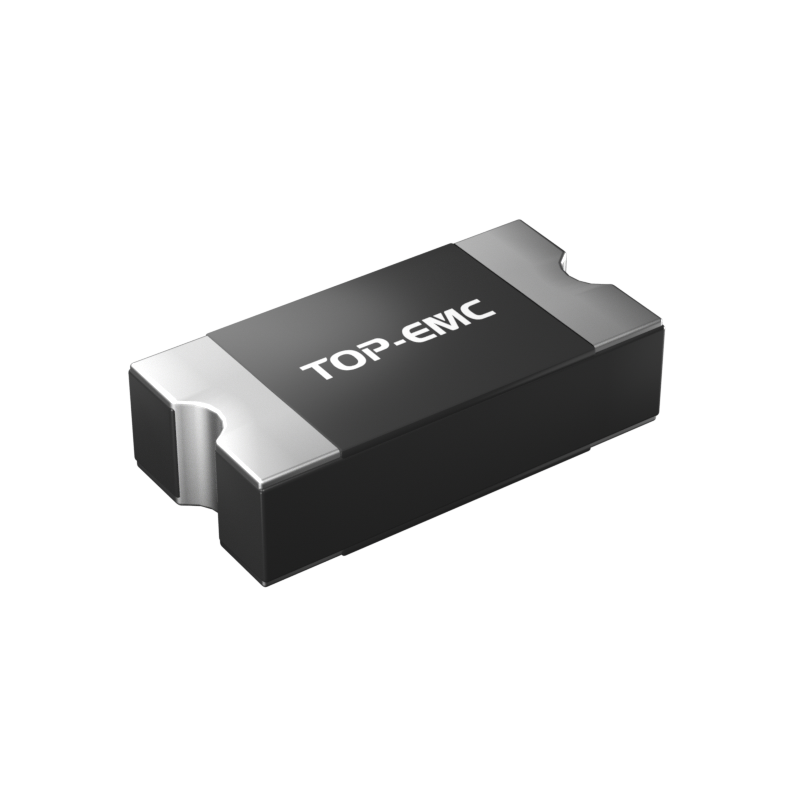

Photo	Package	Part Number	Vmax	Ihold	Itrip	Resistance		Data Sheet
				@25°C	@25°C	Ri min	R1max
			(V)	（A）	（A）	(Ω)	(Ω)
	SMD	TFC0603 Series	6~24	0.05~1.5	0.2~1	0.1~2.00	0.8~10.0
		TFC0805 Series	6~30	0.05~1.10	0.2~2.20	0.06~2.0	0.21~10.0
		TFC1206 Series	6.0~60.0	0.05~2.0	0.15~3.5	0.018~3.6	0.08~50.0
		TFC1210 Series	6.0~60.0	0.05~2.0	0.15~4.00	0.015~2.80	0.07~50.0
		TFC1812 Series	8.0~60.0	0.10~3.00	0.3~5.0	0.012~0.75	0.04~15
		TFC2018 Series	10.0~60.0	0.3~2.00	0.6~4.0	0.03~0.50	0.1~2.3
		TFC2920 Series	24.0~60.0	0.3~3.0	0.6~6.0	0.012~0.6	0.048~4.80
	DIP	TFPI16V Series	16	0.9~14.0	1.80~23.8	0.002~0.07	0.008~0.18
		TFPI30V Series	30	0.3~8.0	0.6~16.0	0.005~0.37	0.02~1.08
		TFPI60V Series	60	0.10~3.75	0.20~7.50	0.02~2.50	0.08~7.50
		TFPI250V Series	250	0.02~2.0	0.045~4.0	0.2~80	1.5~240

过压防护器

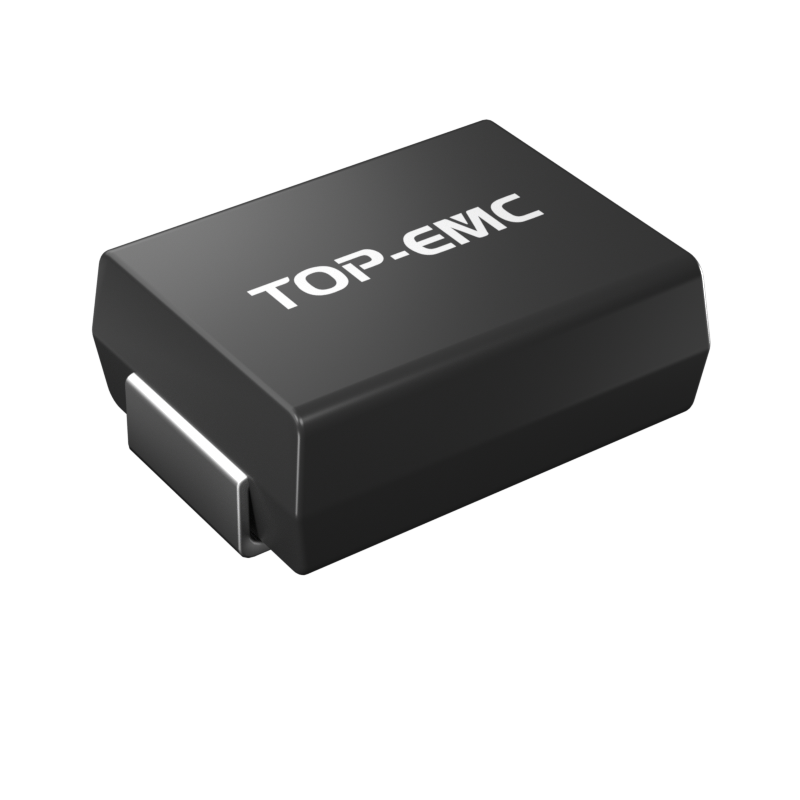

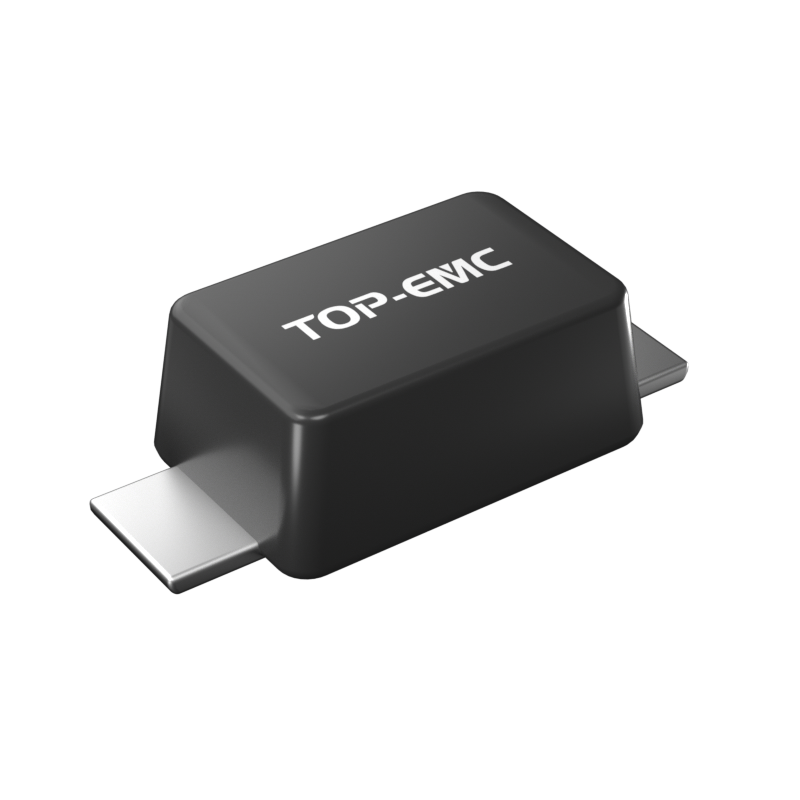

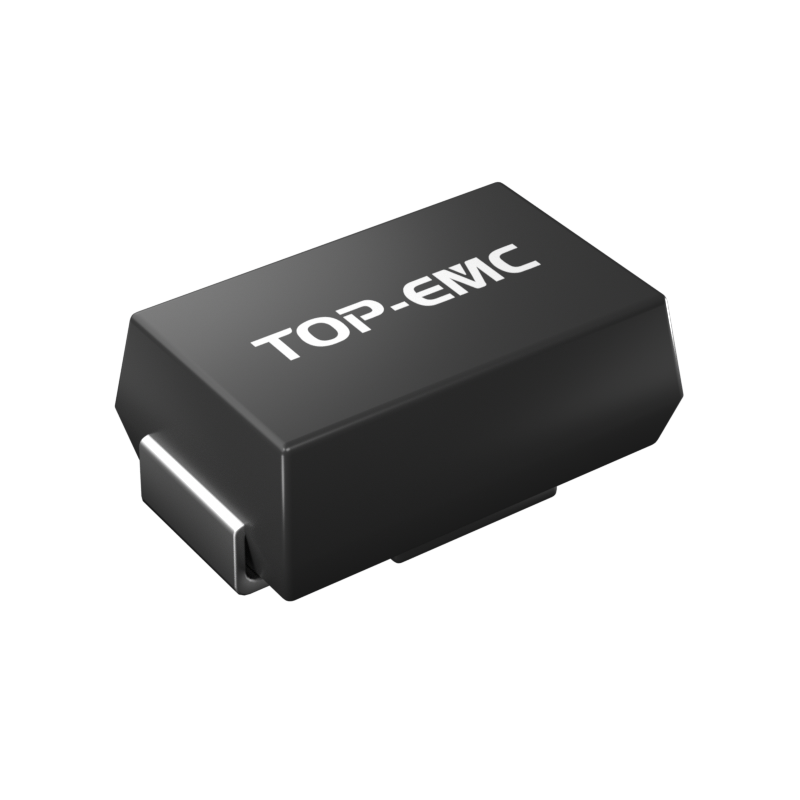

大功率TVS

Photo	Package	Part Number	VRWM	P_PPM	V_BR@I_T	V_C@I_PP	Applications	Data Sheet
					min	max
				（W)	(V)	(V)

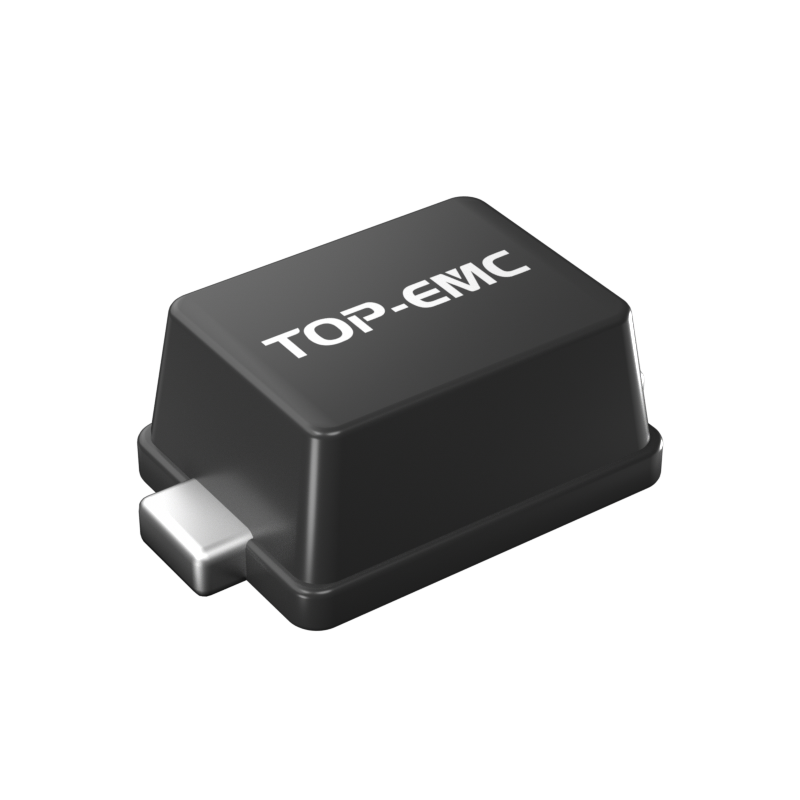

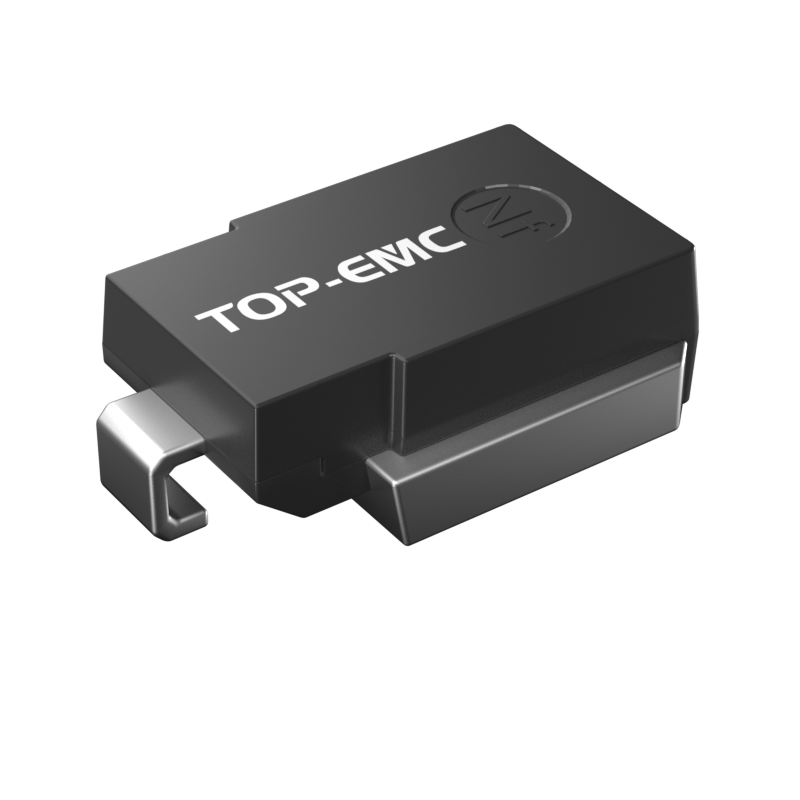

	SMF/SOD-123FL	0.2KP Series	5~220	200	6.4~246	9.2~356.0	Power、high-power drive port
	SMA/DO-214AC	0.4KP Series	5~440	400	6.4~492.0	9.2~713.0
	SMB/DO-214AA	0.6KP-SMB Series	3.3~440	600	4.1~492.0	7.3~713.0
	DO-214AB (SMC)	1.5KP-SMC Series	5.0~440.0	1500	6.4~492.0	9.2~713.0
		5KP-SMC Series	11~170	5000	12.2~189.0	18.2~275.0	Power
		3KP-SMC Series	5.0~220.0	3000	6.4~244.0	9.2~356.0
	DO-218AB	5.5KP Series	10~43	5500	11.1~47.8	17.0~76.7
		6.6KPXXA Series	10.0~43.0	6600	11.1~47.8	17.0~69.4
		6.6KPXXCA Series	12.0~36.0	6600	13.3~40.0	19.9~58.1
		6.8KP Series	22.0~36.0	6800	24.4~40.0	35.5~58.1
	DO-201	1.5KE Series	5.8~70.0	1500	6.45~77.9	10.5~113.0
	DO-204AC/DO-15	0.6KE Series	5.8~154.0	600	6.54~171.0	10.5~246

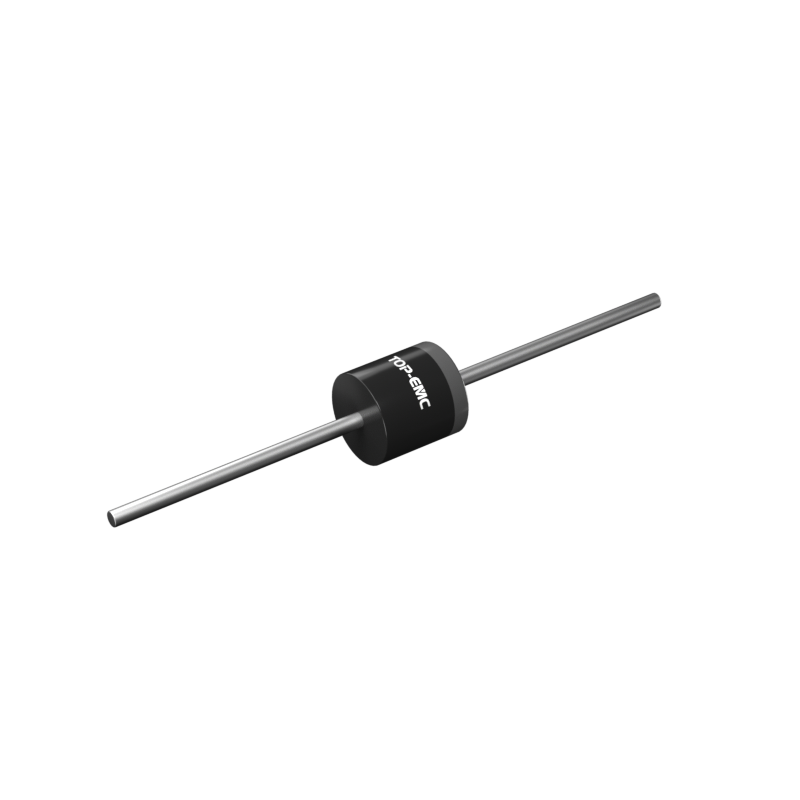

	P600	5KP Series	5.0~250.0	5000	6.4~277.0	9.2~425.0
		8KP Series	12.0~43.0	8000	13.3~47.8	19.9~69.4
		10KP Series	20~43	10000	22.2~47.8	32.4~69.4
		12KP Series	17~280	12000	18.99~312.8	29.3~454.5
		15KP Series	15~43	15000	16.7~47.8	24.4~69.4

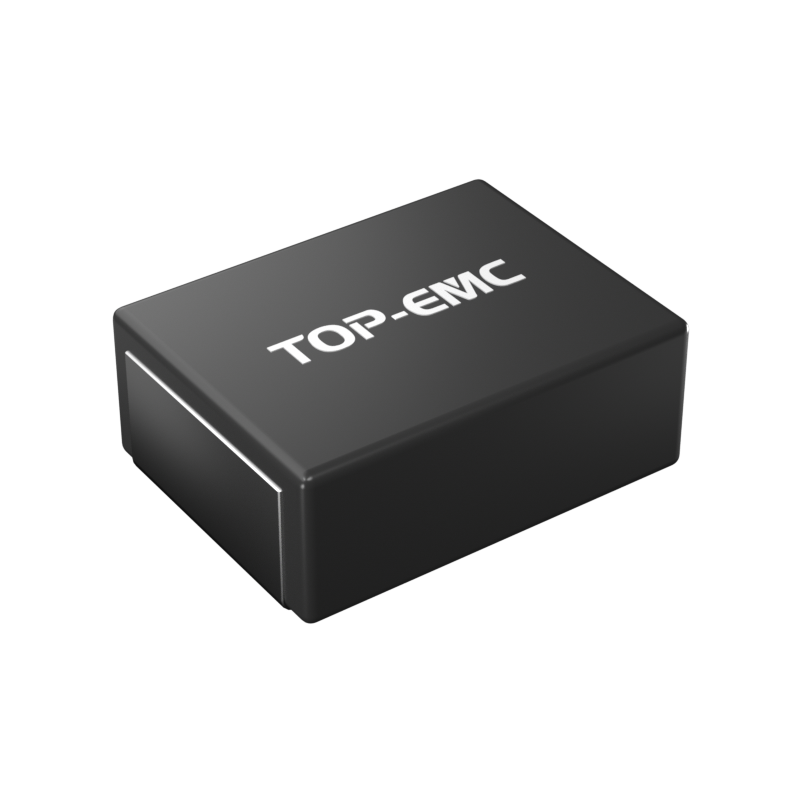

陶瓷气体放电管TGD

Photo	Chip Size (mm)	Part Number	DC Spark-over Voltage	Impulse Spark-over Voltage	Maximum Capacitance	Nominal Impulse Discharge Current	Impulse Discharge Voltage	Data Sheet
Photo	Chip Size (mm)	Part Number	（V）	（V）	（pF）	（A）	（V）	Data Sheet
	4.5*3.2	TGD-4532 Series	90~600	<1200	≤1	2000	6KV
	3.2*1.6	TGD-SMD Series	200~470	<1050	0.5	500	6KV

浪涌防护器TSS

Photo	Package	Part Number	Directional	V_DRM	V_BO	C_O	I_H	Data Sheet
				Min	Max	Tpy	Tpy
				（V）	（V）	（Pf）	（mA）
	DO-214AA	TSSBxxxB1X Series	Bi	6~500	25~600	40~70	50~150
		TSSCxxxB1X Series		6~500	25~600	32~100	50~150
		TSSB400B1X		400	520	35	100
		TSSC400B1X		400	520	35	100
		TSSC750B1X		750	980	50	50
		TSSD400B1X		400	520	40	100
